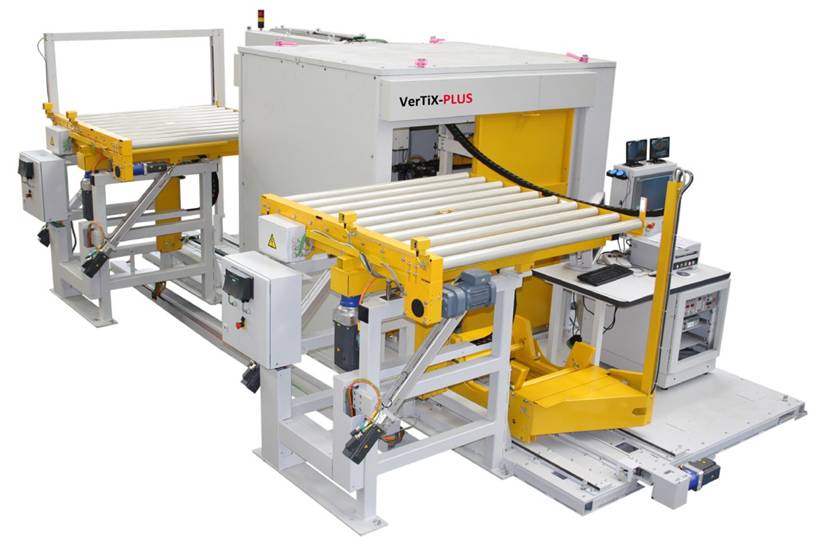

VerTiX-PLUS

  • VerTiX-PLUS - PCR and TBR Tire X-Ray System - 13" to 30" Bead Diameter +


    Fully automatic process-integrated for PCR, Light Truck, Bus and Super Single Tires

    • High precision X-Ray images, pitch 0.4 mm
    • Fast cycle time: less than 22 seconds
    • Compact design for minimum space requirements
    • Minimal maintenance embedded in concept
    • System will fit in a standard 40' container - for easy transport logistics
    • Plug in and begin tire checking - with quick start-up time
  • Tire Dimensions +


    • Outer Diameter
    • 495-1372 mm
    • Section Width
    • 135-510 mm
    • Bead Diameter
    • 13-30 inch
    • Bead Spread Distance
    • 85-500 mm
    • Bead Distance (non spread)
    • min. 70 mm
    • Tire Weight
    • max. 160 kg
  • Cycle Time +


    Less than 22 seconds

  • Machine Options +


  • Machine dimensions +


    Height
    app. 2230 mm
    Width
    app. 7449 mm
    Depth
    app. 4269.5 mm
  • X-Ray Tube +


    Omni Directional Tube
    max. 100 KV (3.0mA)
    max. 6mA
    Radiation Angle
    6˚ x 280˚
